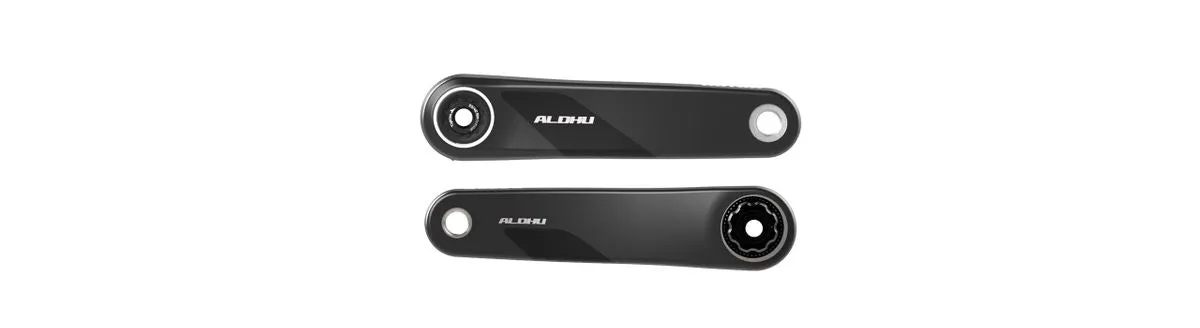

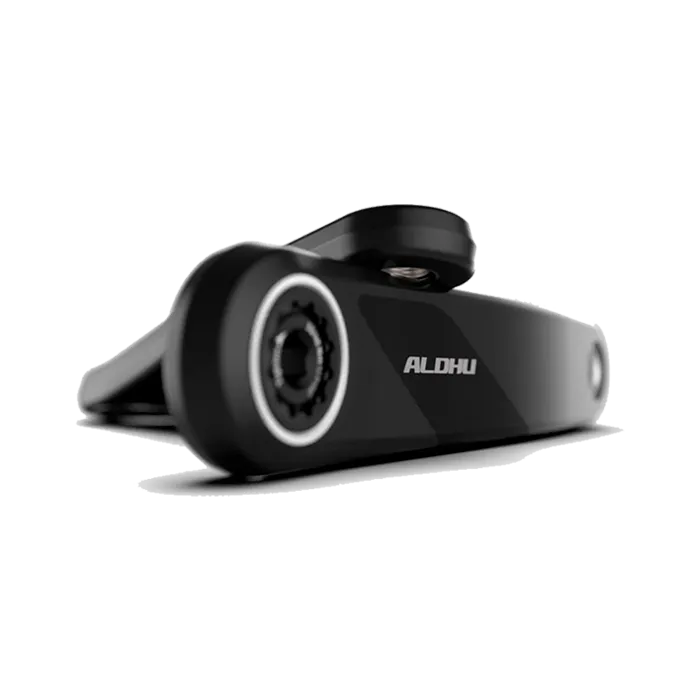

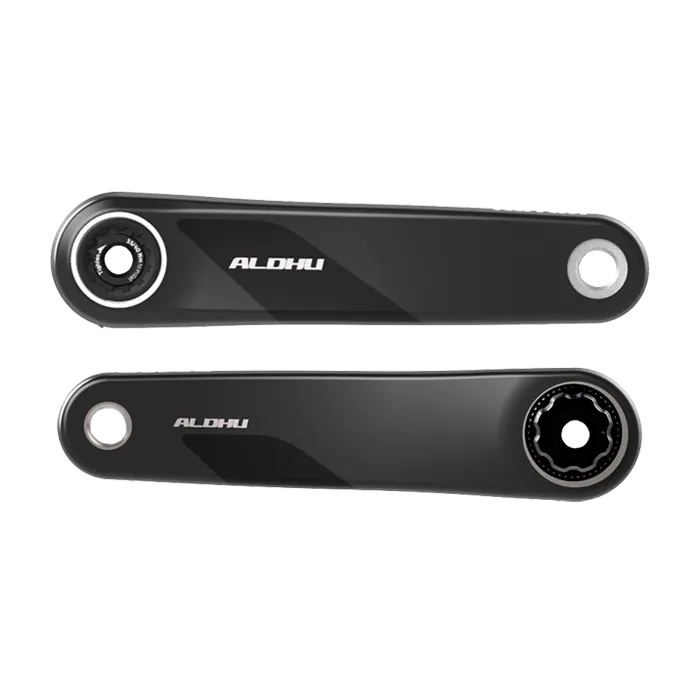

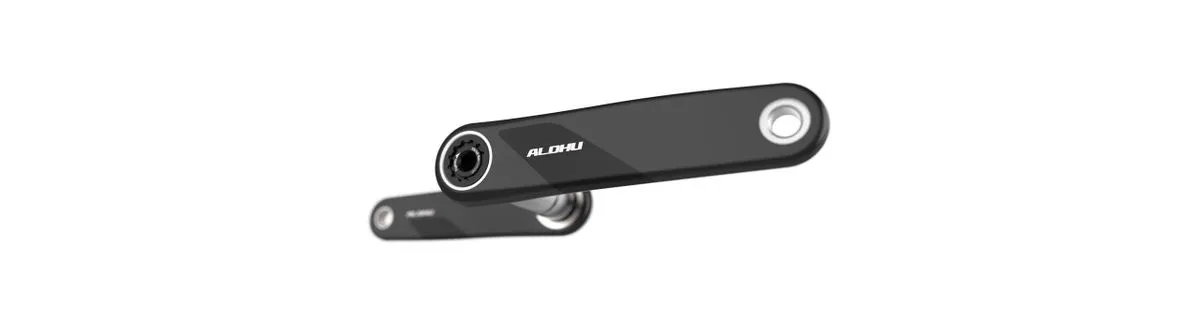

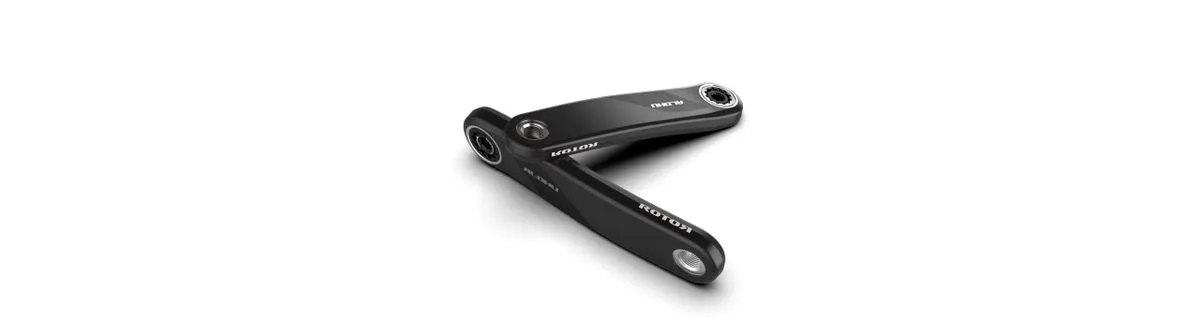

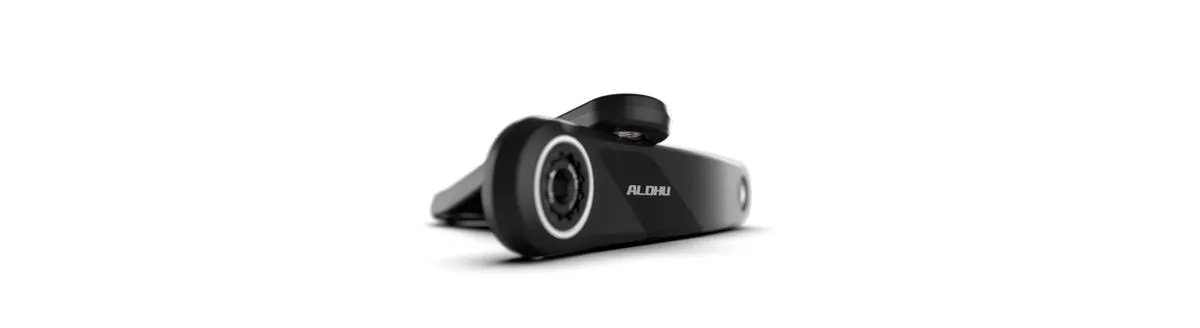

ROTOR ALDHU Carbon Cranks. The ROTOR ALDHU® Carbon Cranks offers such wide configurations to meet the different preferences / needs of each individual cyclist.
With an innovative modular structure, along with spindles and different chainring options, makes each component individually available to suit today's spectrum of users and cycling standards. They incorporate OCP mounting technology, which allows the user to adjust the orientation of ROTOR's oval Q Rings.
ROTOR Aldhu Carbon Cranks features:
| Weight | 260 g (172.5 mm - w/o chainrings & 30mm axle) |
| Sizes | 165 mm | 170 mm | 172.5 mm | 175 mm |
| Q-Factor | 147 mm (standard spindle) | 152 mm (offset spindle) |
| Chainline (2X) | 43.5 mm (standard spindle) | 46 mm (offset spindle) |
| Chainline (1X) | 44.5 mm (standard spindle) | 47 mm (offset spindle) |
| Material | Carbon |
| Compatibility | BSA30, ITA30, BB30 bearing kit, PRESS FIT 4630, UBB4630, BB386, PRESS FIT 4130 |
